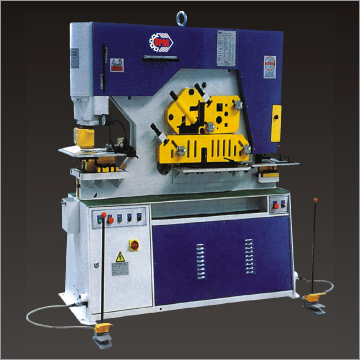

Hydraulic Iron Worker

Hydraulic Iron Worker
Hydraulic Iron Worker
Product Code : 02
Product Description

Hydraulic Iron Worker

The multi functional iron worker can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on. It has another special function, that is, it can also bend the plate below 500 mm. With its multifunction, the machine is your first choice among the counterpart machine. All the components are of the highest quality in their safety, function, capability & maintenance.

Technical Specifications

Model

IW-16

IW-20

IW-25

IW-30

IW-40

Working pressure (KN)

550

750

1100

1400

1800

Max cutting thickness(mm)

16

20

25

30

40

Max cutting length (mm)

400

480

600

600

700

Tensile strength of sheet metal(N/mm2)

<450

<450

<450

<450

<450

Shear Angle(Deg)

7

8

8

8

8

Stroke of Ram(mm)

80

80

80

80

100

Stroke times(min)

8

8

8

8

8

Depth of throat(mm)

300

355

400

600

560

Max. Capacities (mm)

25x16

30x20

35x25

38x26

35x40

Main motor(KW)

4

5.5

7.5

11

11

Length of machine tool(mm)

1640

1860

2355

2680

2800

Width of machine tool(mm)

730

790

960

1040

1260

Height of machine tool(mm)

1770

1900

2090

2300

2420

Weight of machine tool(kg) Approx

1710

2200

3800

6200

8000
