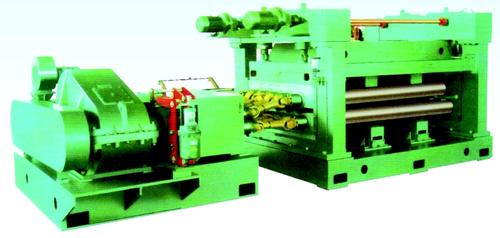

Four high leveller machine

Four high leveller machine
Four high leveller machine
Product Code : 26
Product Description

Employing a lot of experience and expertise in relevant domain, we are now the market leading name for offering superior quality Four High Leveller Machine. Offered machine is manufactured using quality approved components and progressive techniques in supervision of high experienced workforce. This machine is widely used for leveling metals plates with the help of rollers. Furthermore, our prestigious customers can avail this highly efficient Four High Leveller Machine from us at most affordable prices.

Features:

  • Easy to operate

  • Low power consumption

  • Minimum maintenance

  • Robust design



Performance & Structure:-

It is usually made up of motivating system,Electric control system etc.

The plate is processed between the upper and lower rollers so that the stress of the plates can be removed,which helps to achieve the goal of leveling.On the outer flank of each row of upper and lower rollers,there is another row of supporting rollers each,which makes up the four-high roller levelsystem.After being leveled by this machine,the plate or level and cut coiled metal plate into parts under the work of well-equipped product line which consists of de-coiling,guiding palte machine and shearing,stacking and other kind of machine etc.

Main Technical Parameter:-

Specification and Model

Max. Thickness

Roller No.

Roll Dia (mm)

Central Distance(mm)

Leveling speed(mm)

Leveling precision (mm)

(Kw)

SPM (0.5~3) x 1000

3

15

ø90

95

30

1mm/M2

25

SPM (1~6) x 2000

6

15

ø140

162

30

1mm/M2

35

SPM (2~8) x 2000

8

13

ø155

170

25

1mm/M2

45

SPM (2~10) x 2200

10

13

ø160

180

25

1mm/M2

60

SPM (3~12) x 2500

12

11

ø180

200

24

1mm/M2

70

SPM (4~16) x 2200

16

11

ø200

230

23

1mm/M2

80

SPM (5~20) x 2500

20

9

ø230

300

18

1mm/M2

90

SPM (8~25) x 2500

25

9

ø260

350

18

1mm/M2

125

SPM (9~32) x 2500

32

9

ø300

380

16

1mm/M2

150
