Cnc Hydraulic Press Brake

Cnc Hydraulic Press Brake
Cnc Hydraulic Press Brake
Product Code : 01
Product Description

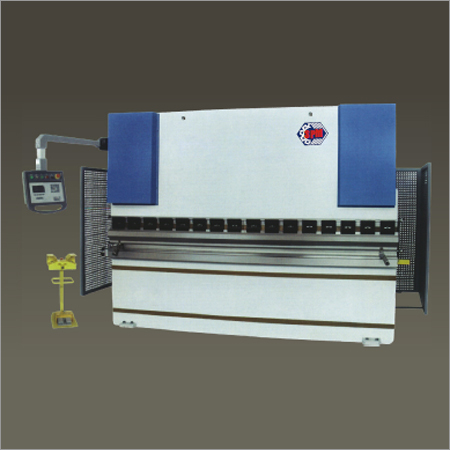

CNC Hydraulic Press Brake

The main machine adopts the structure of above hydraulic press brake. Special CNC system for press brake. High Precision, Sophisticated ball screw. Back gauge driven by digital AC servo motor. High speed, precise fix position. Being equipped with double axles device, more axles are optional.

The hydraulic press brake is equipped with oil cylinders to ensure the better bending effect compared with other peer products. It employs poer adjusting devices for the ramstroke and a back guage with a manual fine adjusting mechanism, besides it has a counter displaying the number. What is more the Machine also own an adjusting device of upper tool wedge clamping on the top of upper tool to ensure the precise of bending.

Technical Specifications

Specification

Nominal Pressure

Length of Working table

Distance between uprights

Throat depths

Ram Stroke

Motor power

KN

Mm

mm

mm

mm

kW

PB-63/2500

630

2500

2020

250

120

5.5

PB-63/3200

630

3200

2520

250

120

5.5

PB-80/3200

800

3200

3020

320

120

7.5

PB-80/4000

800

4000

3020

320

120

7.5

PB-100/2500

1000

2500

2020

320

120

7.5

PB-100/3200

1000

3200

2520

320

120

7.5

PB-100/4000

1000

4000

3020

320

120

7.5

PB-100/5000

1000

5000

4010

320

120

7.5

PB-125/3200

1250

3200

2520

320

120

7.5

PB-160/3200

1600

3200

2520

320

200

11

PB-160/4000

1600

4000

3020

320

200

11

PB-400/6000

4000

6000

4850

400

250

30

PB-1000/8000

10000

8000

6000

500

450

2x37
