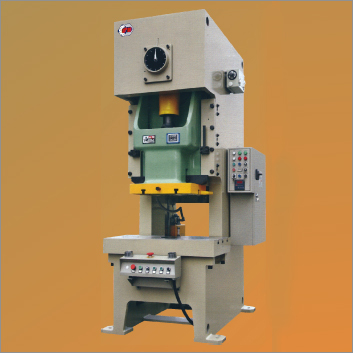

C Frame Fixed Table Press

C Frame Fixed Table Press
C Frame Fixed Table Press
Product Code : 23
Product Description

Owing to our prominent experience and expertise in this domain, we are now engaged in offering high quality C Frame Fixed Table Press. Offered press is manufactured using good quality components under the strict vigilance of our team of adroit professionals. Widely appreciated among our clients due to its optimum performance and negligible maintenance, the provided press is tested before delivering at clients’ end. Moreover, this C Frame Fixed Table Press can be availed by our clients at reasonable prices.

Features:

  • Robust construction

  • Emergency stop

  • Easy to operate

  • Power efficient

CS Series C Frame Fixed Table Press

Features

  • Steel-welded frame, high rigidity and less deformation.
  • Six-side long rectangle guides of the slide with high moving precision and high accuracy, extending the service life of the die.
  • Pneumatic dry combination friction clutch-brake, low noise, and long service life, to ensure reliable safety and flexible action.
  • Hydraulic overload protection device achieving high sensitivity in effectively protecting against overload, to ensure convenient and reliable operation.
  • Automatic grease lubrication system, to ensure smooth operation of the machine.
  • PLC electrical control system allows various auto-equipment reprogrammed according to different requirements and perform various functions, to ensure high reliability and high adaptability.
  • Emergent stop, inching, single and continuous movement.
  • Photoelectric protector, transmission output axle, feeder, air cushion and other optional accessories are available for the power press subject to the user's demands.

Technical Specifications

Items

Technical Data


Model

CS-25

CS-45

CS-60

CS-80

CS-110

CS-125

CS-160

CS-200

CS-250

CS-315

CS-315A

CS-400

CS-400A

CS-500

L

S

L

S

L

S

L

S

L

S

L

B

L

B

L

B

L

S

L

S

L

S

L

S

L

S

L

Nominal Pressure

kN

250

450

600

800

1100

1250

1600

2000

2500

3150

3150

4000

4000

5000

Nominal pressure stroke

mm

2.8

3.2

4

4.5

5

5

6

6

6

7

8

8

8

8

Stroke of slide

Mm

80

50

100

70

120

80

140

90

160

100

160

100

180

110

200

130

220

150

250

180

250

180

250

180

250

180

250


Strokes

Variable

S.P.M

70-100

80-130

60-90

70-110

50-80

60-100

40-75

50-90

35-70

45-80

35-65

45-80

30-55

35-70

25-50

30-60

25-45

30-50

25-40

25-40

25-35

25-35

20-30

Single

S.P.M

90

110

80

100

70

90

60

80

60

80

55

70

50

60

45

50

40

45

35

35

30

30

25

Max. Die set Height

Mm

250

265

270

285

300

320

320

345

350

380

370

400

400

435

450

485

500

535

500

585

500

535

500

585

500

535

550

Die Height adjustment

Mm

50

60

70

80

90

90

100

110

110

120

120

120

120

120

Depth of throat

Mm

210

225

270

290

350

370

390

430

450

480

420

480

420

420

Distance between Uprights

Mm

450

500

560

590

680

710

800

900

950

1050

1000

1050

1000

1220

Size of table

L-R

Mm

710

810

870

1000

1100

1120

1260

1400

1590

1700

1650

1850

1800

1820

F-B

mm

400

440

520

560

680

720

760

840

880

940

820

940

820

810

Thickness

mm

85

110

130

130

160

160

165

200

200

200

200

200

200

240

Size of opening in table

Diameter

Mm

ø100

ø150

ø150

ø150

ø160

ø160

ø180

ø200

ø250

ø250

ø250

ø250

ø250

ø250

Bottom size of Slide

L-R

Mm

360

410

480

560

620

620

700

880

930

1000

950

1000

950

1000

F-B

mm

250

340

400

430

520

520

580

650

700

720

700

720

700

720

Hole for Punch Shank

Diameter

mm

ø40

ø50

ø50

ø60

ø70

ø70

ø70

ø70

ø70

ø70

ø70

ø70

ø70

ø70

Depth

mm

60

60

60

80

80

80

100

100

100

100

100

100

100

100

Single Speed Motor Power

KW

3

5.5

5.5

7.5

11

11

15

15

20

30

30

37

37

55

Variable motor power

KW

3

5.5

7.5

7.5

11

15

15

22

30

37

37

37

37

55

Overall dimensions

F-B

mm

1350

1410

1615

1915

2200

2300

2355

2690

2830

3400

3350

3500

3450

3900

L-R

mm

950

1080

1200

1385

1419

1480

1515

1630

1750

1950

1900

2200

2150

2250

Height

Mm

2160

2300

2570

2820

3190

3220

3250

3810

3930

4180

4100

4500

4450

5255

Total weight

Kg

3100

4000

6000

7800

11000

13000

14200

21000

25000

33500

30000

39000

36000

53000
